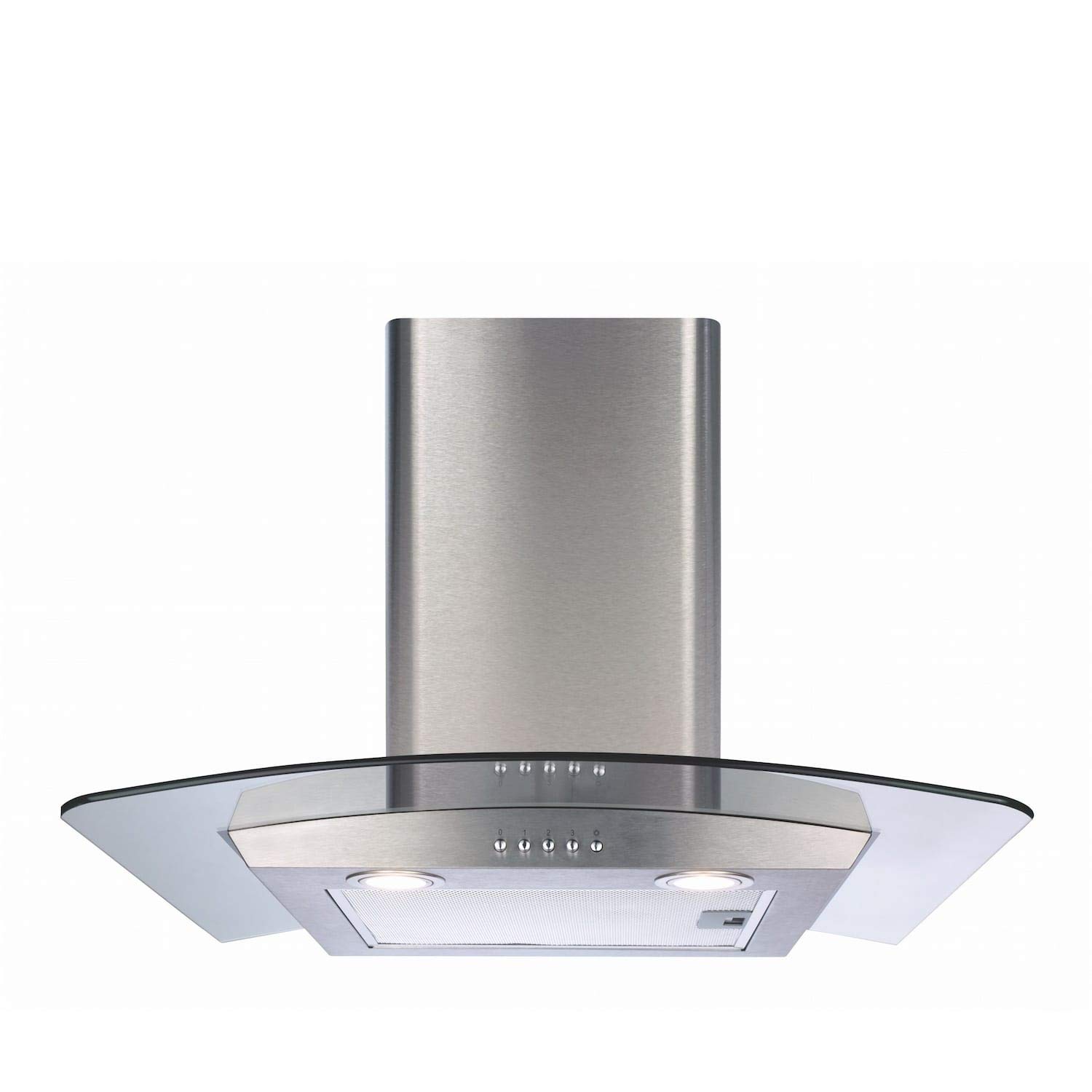

CDA ECP62SS 60cm Stainless Steel Curved Glass Kitchen Cooker Hood Extractor Fan

Description

The CDA ECP62SS has a striking curved glass stainless steel design which is both chic and practical.
The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.
ACCESSORIES
Wall fixings
OPTIONAL ACCESSORIES
Ducting kit code: 120mm, AED 51/53/54
Ducting kit code: 150mm, AED 61/63/64
Charcoal filter for re-circulation: CHA12 (pack of 1)
Charcoal filter for recirculation
TECHNICAL SPECIFICATION
Rated electrical power: 140W
Required height over gas hobs: 700mm (min)
Required height over electric hobs: 600mm (min)
Motor Input: 100W
Power supply: 3A
Mains lead length: 1m
H05VV-F
Class I
Outlet diameter: 120mm/150mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor.
This keeps noise levels to a minimum.
EXTRACTION RATES AND NOISE
Extraction rate: 391m3/hr
Noise level: 60dBA
Extraction rate at first speed: 218m3/hr
Noise level at first speed: 50dBA
Extraction rate at second speed: 302m3/hr
Noise level at second speed: 58dBA
Extraction rate at third speed: 391m3/hr
Noise level at third speed: 60dBA
ENERGY
Energy rating: D
LIGHTING
Number of lights: 2
Type of light: LED
Wattage of lights: 4W
FILTERS
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Charcoal filter code: CHA12
Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
FITTING NOTES
Please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
MISC INFORMATION
WEEE Category: 01

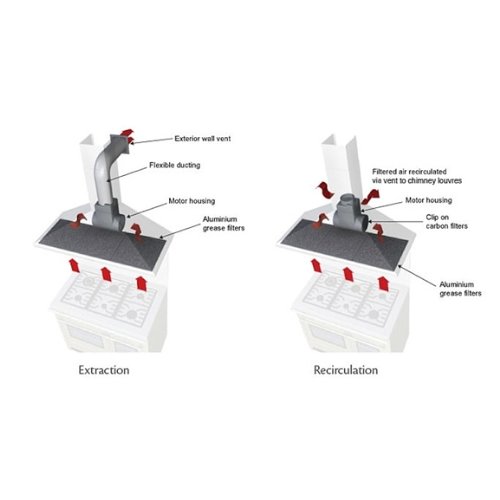

Ducted/ re-circulating installation
3 speeds
Aluminium grease filters
Push button control
Lighting: 2 x 2W LED Lights
